EVO Mini
EVO Mini
Depositor Kit.
Cook. Hold. Deposit.

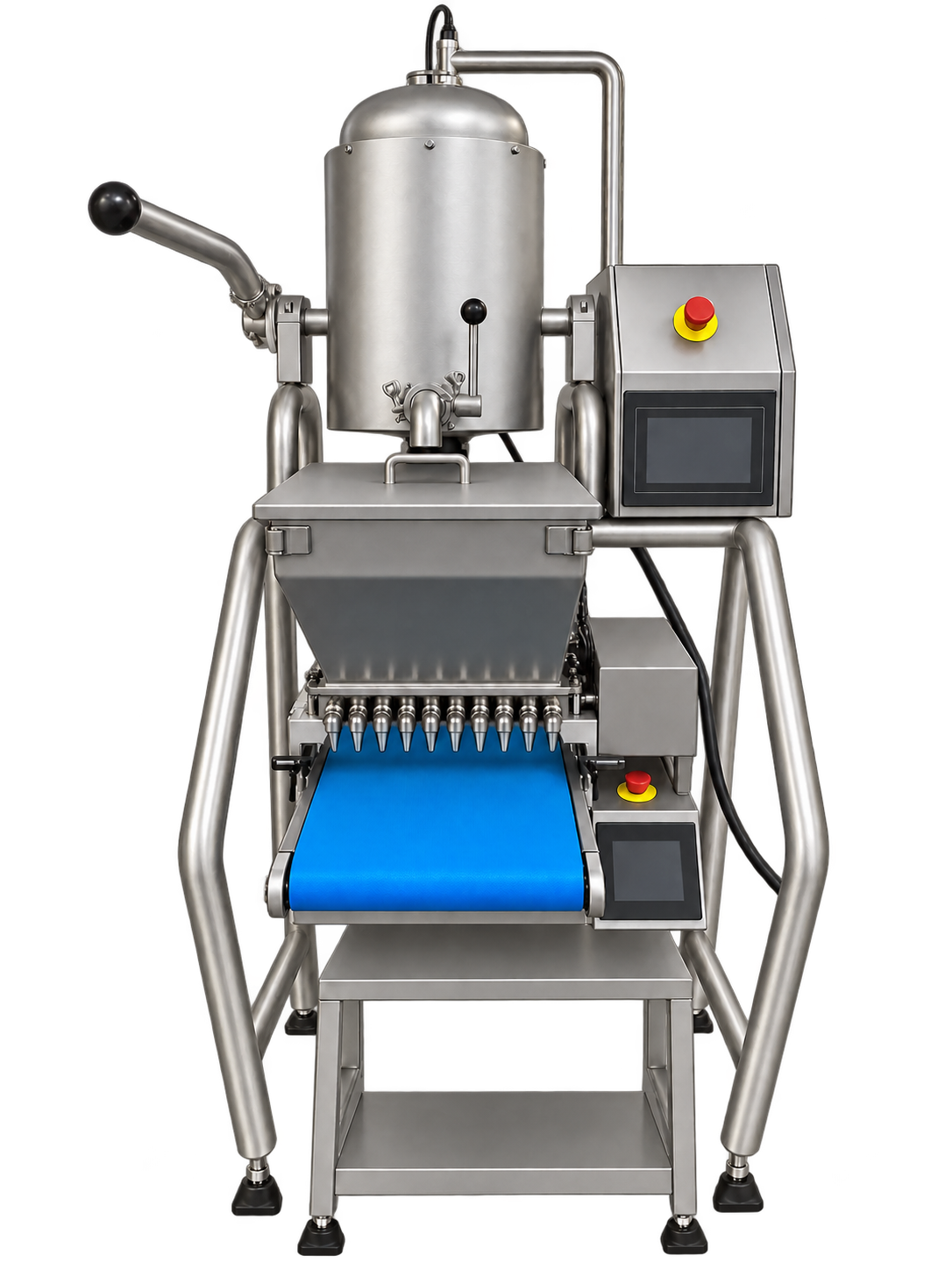

The EVO MDK brings a cooker, heated hopper and servo depositor together in a compact setup. Built around smaller candy batches and the team making them.
Quote-based ordering. ACH or wire. Shipping quoted separately.
The Mini Kit.
Follow your batch.
Follow the batch from cooking to depositing. This operating footage shows an earlier configuration; the current kit is illustrated above. Use the drawing below for installation dimensions.
Actual EVOCAN footage · earlier configuration
Play, pause, seek and adjust sound in the player. Choose a clip below.
EVO MINI KIT / LATEST MODEL
From the cooker.
To every nozzle.
Explore the latest Mini Kit in 3D. Rotate it, separate the assemblies, or select a part below to see its location. Callouts stay attached as you turn the machine.
Preparing the interactive model…
Drag to rotate · Scroll or pinch to zoom · Select a part on the model, or choose a list item to see its callout. Use Isolate part for a close-up. Keyboard: focus the model, then use arrow keys and + / −.
Find a replacement.
37 partsNo parts match. Try a different term or choose All assemblies.
Exterior modeled from the supplied latest-model drawings and photos. Hidden geometry and exploded separation are illustrative. Replacement components, dimensions and electrical ratings are confirmed against your machine serial number; this viewer is not a service guide.
Plan the footprint.
Front, side and top views from the supplied equipment drawing, with the domed cooker lid added from the latest photo reference.
Open the drawing to zoom into the layout. The added lid profile is illustrative. Dimensions are from the supplied equipment drawing; confirm the final installation envelope and allow space for operation and access.
From the cooker
to the mold.
Three connected stages to discuss around your recipe, mold layout and target piece weight.
- 01
Cook and transfer
Prepare the batch in the integrated cooker, then use its built-in spout to transfer the mixture into the hopper below.
- 02
Hold in the heated hopper
The heated hopper holds the batch at the depositing head. Recipe and operating temperatures are confirmed with your team.
- 03
Deposit into your molds
Ten nozzles deposit into matching cavity rows. The servo-driven conveyor indexes silicone sheet molds beneath the head.
Plan cooling and finishing around your recipe. An optional demolding station can be specified with your setup.
Size up your setup.
Latest supplied model: cooker nameplate, packing list and equipment drawing.
| Cooking system | 20 L integrated cooker with transfer valve and spout |
|---|---|
| Cooker rating | 6.5 kW; 220 V, three phase, 50 Hz on the supplied nameplate |
| Depositor supply | 220 V, single phase per the supplied packing list |
| Depositor hopper | Heated stainless hopper with graphite jacket and removable lid |
| Depositing head | 10 nozzles |
| Operator controls | Separate cooker and depositor touchscreens |
| Mold transport | Blue conveyor belt with end rollers |
| Overall drawing envelope | 950 W × 1150.5 D × 1818 H mm |
| Cooker frame depth | 1060 mm |
| Support | Tubular cooker frame and wheeled depositor stand |
| Demolding station | Optional; specified in your quote |
The cooker and depositor have separate electrical references. EVOCAN confirms the supply voltage, phase, frequency and connections for your installation in the quote. Output depends on recipe, piece weight and mold layout.
Earlier Mini Kit footage
A few close-ups from a previous configuration. The current EVO MDK is shown above; your quote confirms the equipment supplied.
An earlier Mini.
The process up close.
An earlier Mini Kit mixing a purple batch. This footage shows a previous configuration; see the current kit above for today’s product presentation.
Earlier Mini Kit footage · configuration differs from the current EVO MDK
Play, pause, seek and adjust sound in the player. Choose a clip below.
Build around
what you make.
Specify compatible molds, batch-handling trays and finishing needs with your Mini. Accessory quantities are confirmed in your quote.
Vented trays & dollies
Plan how your team will organize and move batches after depositing.
ExploreDual-hopper depositing
Explore the EVO30 for two-color and dual-flavor confections.
ExploreBefore you choose your Mini.
What does the Mini Depositor Kit combine?
The EVO MDK combines a cooker, heated hopper and depositing assembly in a compact setup. We confirm the supplied components, mold requirements, controls and utilities in your quote.
Are molds and trays included?
Mold patterns, quantities, trays and other accessories are specified separately in your quote. The reference setup uses silicone sheet molds matched to the ten-nozzle layout.
Can you check the fit for my recipe?
Yes. Share your formulation, target piece weight, mold shape, batch size and production goals. We’ll review the configuration and any testing requirements with you.
Let’s plan your Mini setup.
Tell us what you want to make, how much you want to produce, and where the equipment will go. We’ll work through the kit, molds and delivery with you.
Orders are confirmed with EVOCAN and paid by ACH or wire. Shipping is quoted separately and paid by the buyer.
